Product introduction

Resin bond CBN grinding wheel has high hardness, high strength and strong grinding ability. It is mainly used for grinding high-hard carbon steel and metal materials. Such as auto parts, bearings, compressor parts, hydraulic parts and so on.

Resin CBN wheel has a good grinding feed, sharp grinding, not easy to be blocked. The specific characteristics are as follows:
1. High-quality raw materials, uniform sand, high purity, sharp and wear-resistant, not easy to loose sand, and low loss;
2. Sharp and fast cutting, high hardness, high grinding efficiency;
3. Good self-sharpening, full of elasticity and good grinding and polishing performance, low heat generation, not easy to block, not to damage the workpiece;
4. High temperature hot pressed produced, CNC precision turning, high precision, strict quality control;
5. CBN resin grinding wheel is cured at low temperature, the production cycle is short, and the equipment and supply process are relatively simple; because the resin has fluidity, it is easy to form a grinding wheel with a complex surface.

CBN resin grinding wheels can be selected according to the product model (parallel grinding wheel, parallel arc grinding wheel, double-sided concave grinding wheel, double bevel grinding wheel, bowl grinding wheel) and so on.

Their different usages:

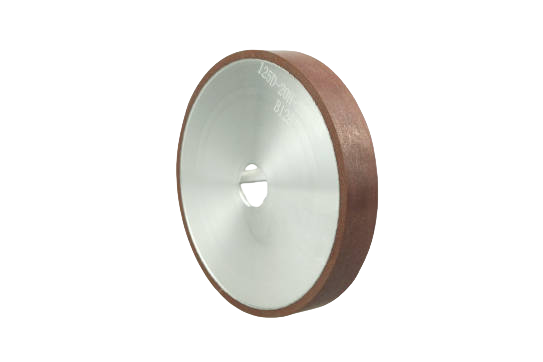

1. Parallel resin CBN grinding wheel: mainly used for cylindrical grinding and blade machining of quenched alloy steel;
2. Parallel resin CBN arc grinding wheel: mainly used for forming grinding of carbon steel and forming grinding of arc surfaces, such as high-speed steel saw teeth, etc;
3. Double-sided concave resin CBN grinding wheel: mainly used for grinding stainless steel measuring tools and coreless grinding wheels;

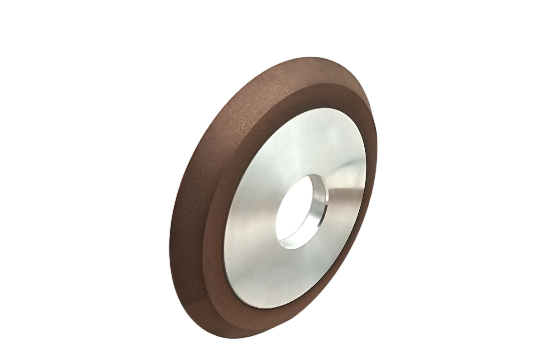

4. Double bevel resin CBN grinding wheel: mainly used for forming grinding of white steel gear hobs and thread cutters;

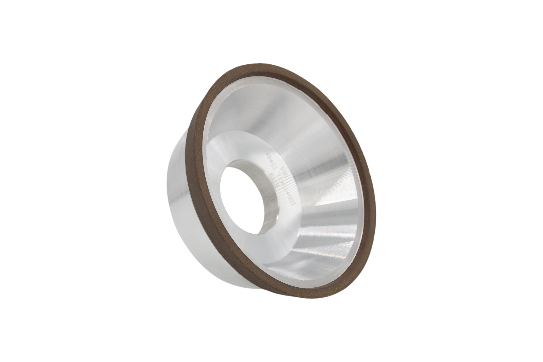

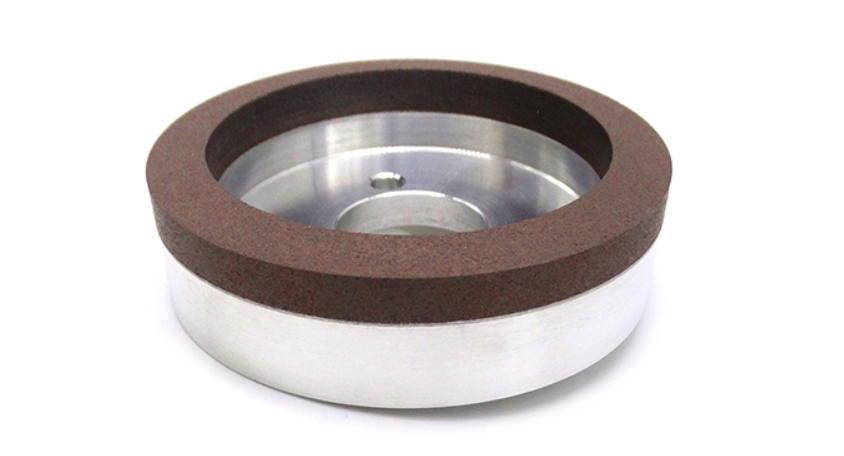

5. Bowl-shaped resin CBN grinding wheel: mainly used for the sharpening of white steel knives and high-speed steel knives, and can also be used for milling.
